API Authorization

Tingyun provides data export APIs for all functional modules, and all APIs use the same authentication method.

Tingyun API Authentication

Terminology

api_key: A public key assigned by the platform to each administrator (main account), which is a string of characters used to verify identity when making API requests. You can obtain it from "User Center > Account Management > API".

secret_key: A private key used to generate digital signatures, which corresponds one-to-one with api_key. You can obtain it from "User Center > Account Management > API".

timestamp: The current request timestamp (millisecond timestamp).

auth: A digital signature generated through specific rules.

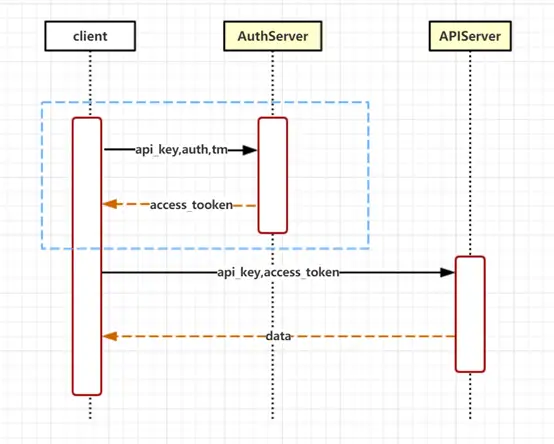

Authentication Description

1. Users send a request to the authentication service, which includes api_key, auth, and timestamp parameters.

2. After receiving the request, the authentication service validates the parameters and returns an access_token upon successful validation.

3. After receiving the access_token, you can use it to request APIs and obtain data.

access_token Description:

1. The access_token is valid for 2 hours and expires after expiration.

Applying for access_token again will invalidate the previously applied access_token, with the most recently applied one taking precedence.

2. After the access_token expires, you need to reapply. It is recommended to establish an access_token update mechanism so that it can be updated in time after expiration.

auth Calculation Rules:

1. auth string concatenation

api_key="here_is_the_api_key_value"&secret_key="here_is_the_secret_key_value"&timestamp="here_is_the_current_request_millisecond_timestamp"

2. auth string encryption: Encrypt the concatenated auth string with 32-bit lowercase MD5 encryption.

Obtaining access_token

API endpoint: ${host}/my-api/auth/token?api_key=xxxxx&auth=xxxxx&timestamp=xxxxxx

Parameter Description

Parameter	Type	Description
api_key	String	Identity verification code
auth	String	Encrypted signature
timestamp	Long	Current request millisecond timestamp

Response Description

Example:

{

"code":200,

"msg":"success",

"access_token":" hbWUiOiLkupHljZfnlLXnvZEiLCJjb"

}

Description:

Parameter	Description
code	Return code
msg	Return message
access_token	access_token, used for identity authentication when calling Tingyun APIs

Return Code Description:

Code	MSG	Description
200	success	Success
40001	Invalid timestamp	Invalid timestamp
40002	Invalid api_key	Invalid api_key
40003	Invalid auth	Invalid signature

Calling Tingyun APIs to Obtain Data

To call Tingyun APIs to obtain data, you need to add the Authorization parameter in the request Headers, with the value "Bearer"+\${access_token}.

Authorization example:

Authorization= Bearer hbWUiOiLkupHljZfnlLXnvZEiLCJjb

Note: There is a space between Bearer and access_token.
