Integrate Alibaba Cloud Data
Supported Versions and Requirements
Currently supported services:
- Elastic Compute Service (ECS)
- ApsaraDB for MongoDB
- ApsaraDB RDS MySQL
- ApsaraDB RDS SQL Server
- ApsaraDB RDS PostgreSQL
- Message Queue for Apache Kafka
- ApsaraDB for Redis (Tair)
Minimum Collector version: 4.2.0.0, with the Guanyun Collector module enabled.
Prometheus Service Billing Information (Alibaba Cloud)
Due to reliance on Alibaba Cloud's Prometheus service/data delivery function, there will be associated fees. For more information, see Alibaba Cloud
Confirming the Server Where Collector Is Installed
To deliver data to Collector through Alibaba Cloud Prometheus Remote Write, ensure that the network between Collector and the Alibaba Cloud Prometheus server is accessible.
Configuring Network and Port Rules
Tip
The following IP addresses and ports are examples. Update them based on your environment before applying the network rules.
| Source Address | Target Address | Target Port | Description |
|---|---|---|---|
| Collector Server | Platform | 80 | Installing Collector and uploading data to Guanyun Platform |
| Alibaba Cloud Prometheus Server | Collector Server | 9091 | Receiving Prometheus Remote Write delivery data |
Installing Collector
-
Log in to Guanyun Platform, and in the left navigation menu select All Applications > Deployment Status > Collectors Operation.
-
Click Create in the upper-right corner and configure the Collector parameters.
You need to enable the Guanyun Collector function to ingest monitoring data from Zabbix, Prometheus, OpenTelemetry, and external data sources.
Install Collector.
Configuring Alibaba Cloud to Enable Data Delivery
For more information, see Create Data Delivery Task
-

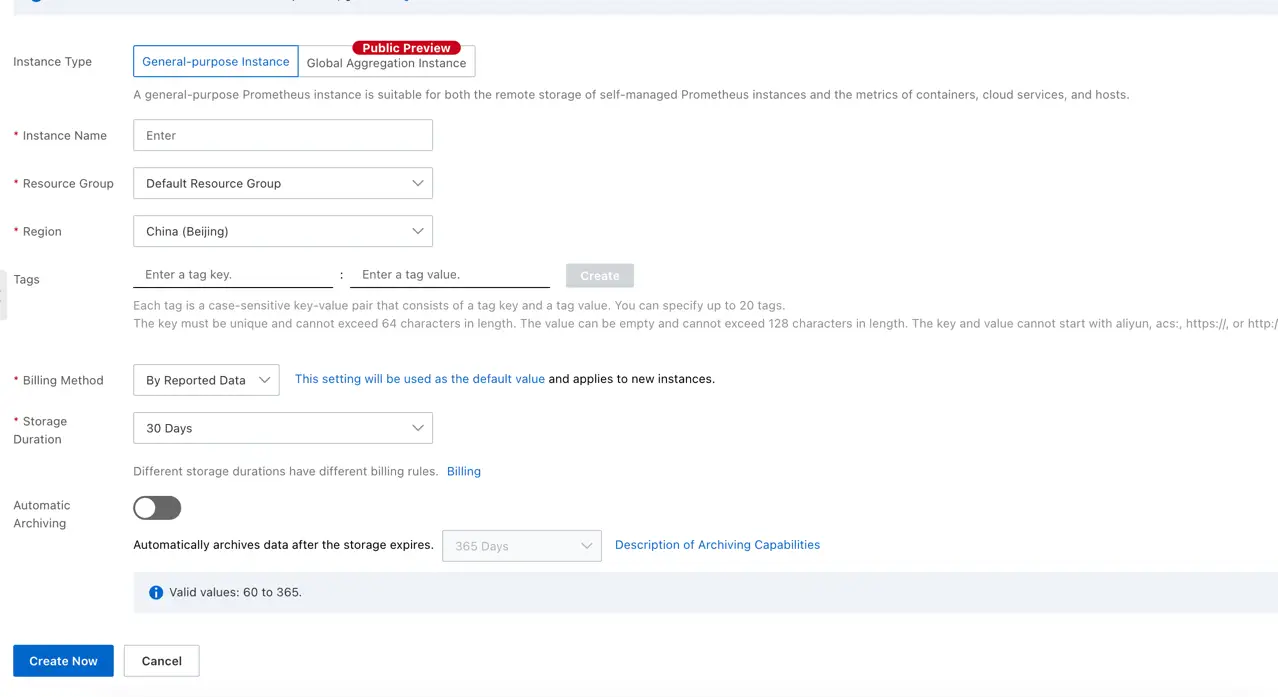

Create Prometheus Instance (Optional)
-

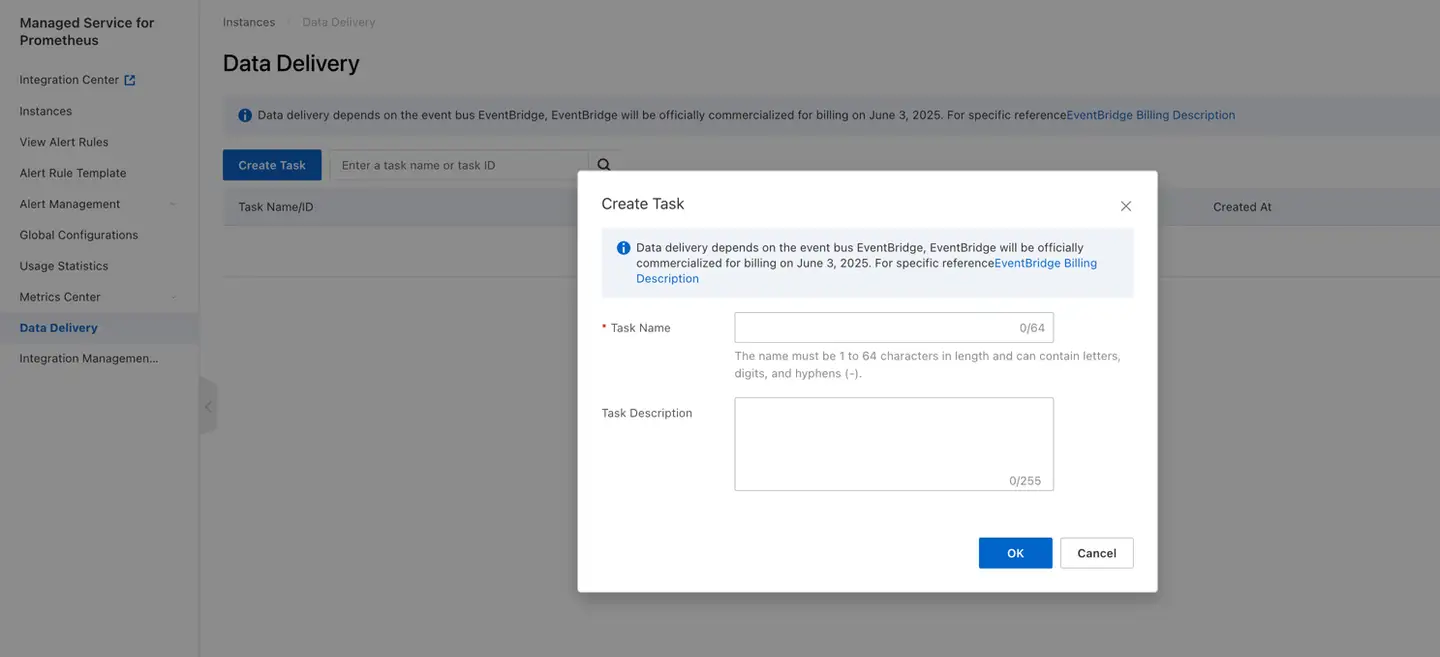

Create Data Delivery Task
-

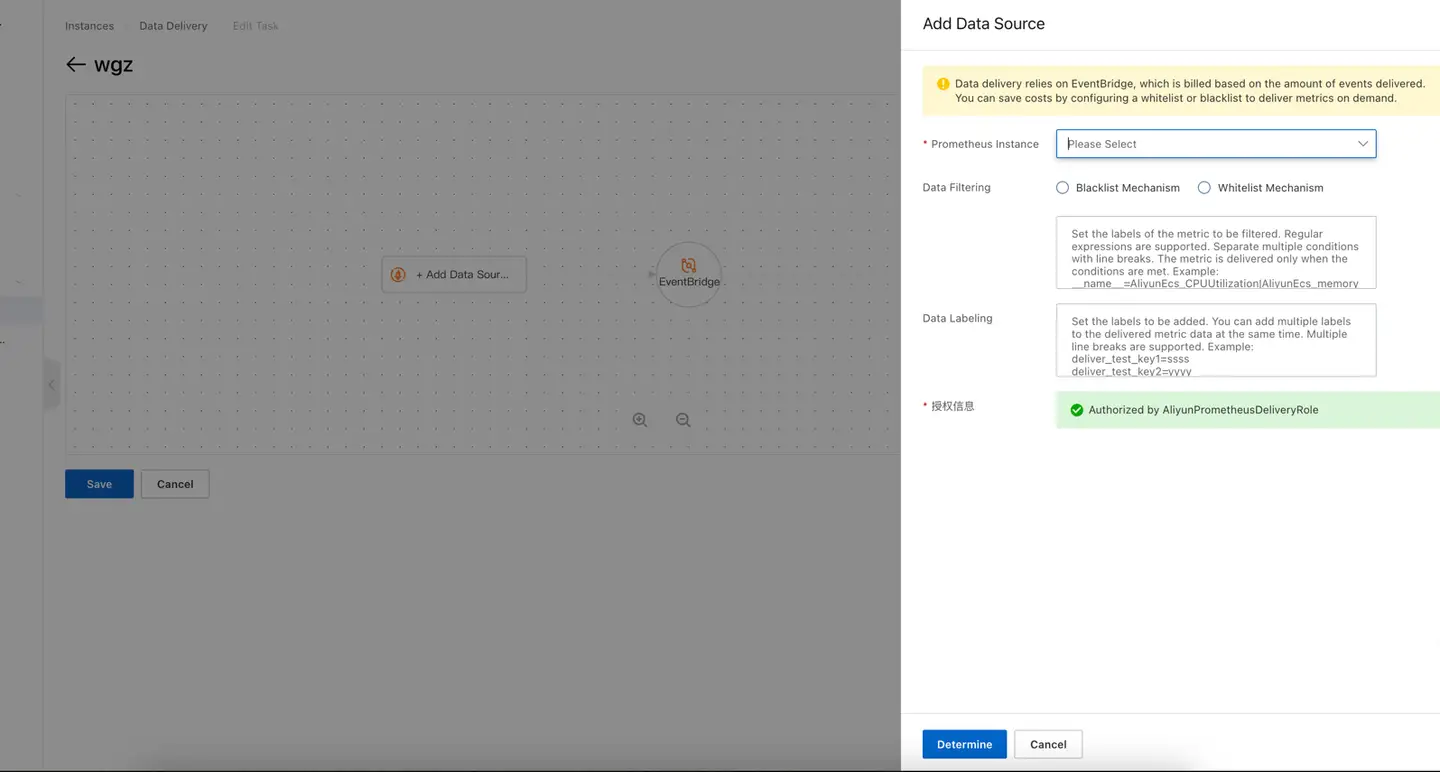

Select the newly created Prometheus instance or other existing instances as the data source
-

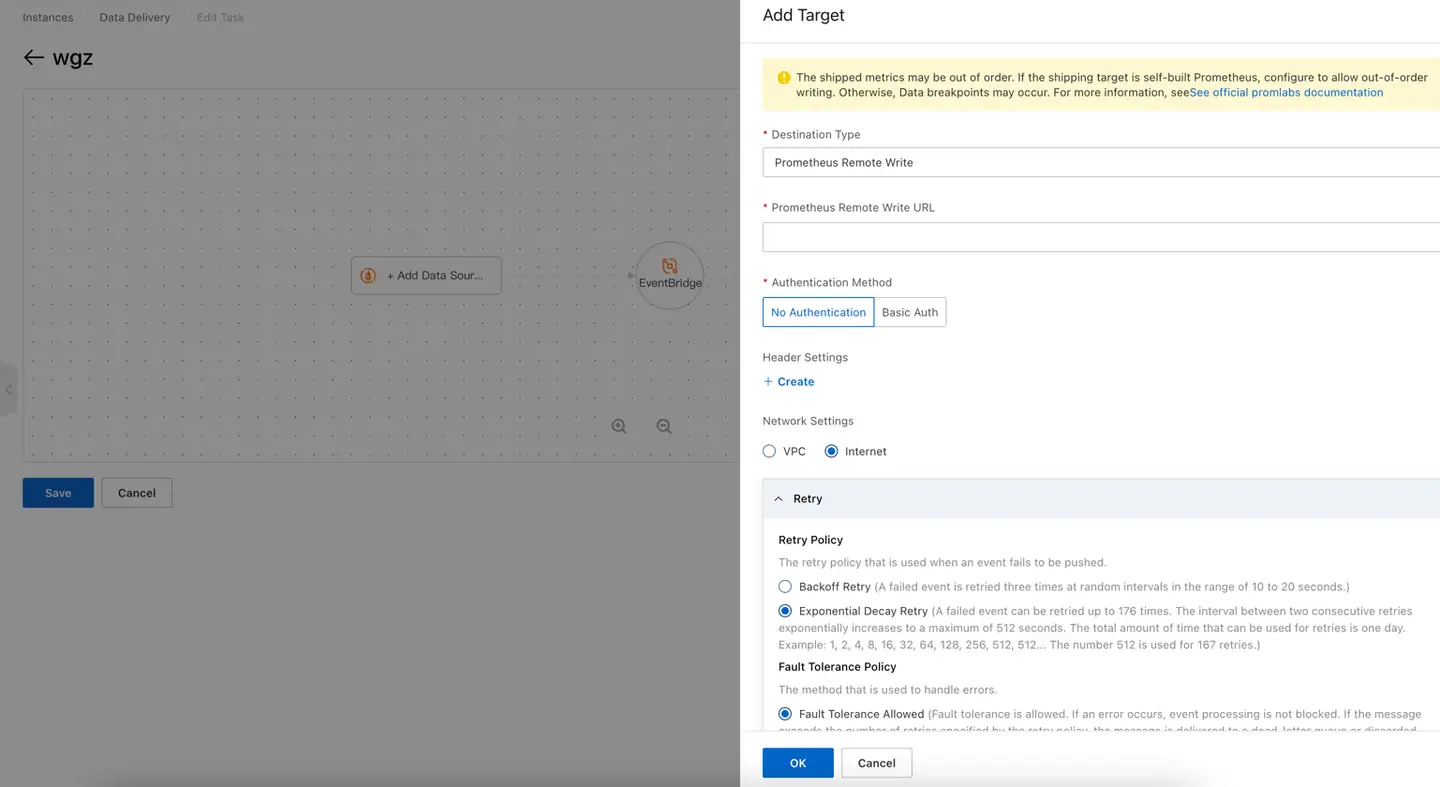

Modify Delivery Target
Configure the delivery target as Prometheus Remote Write, enter the Collector receiving address, and select network configuration according to the deployment situation.
-
Configuring Collector to Receive Alibaba Cloud Data
-
Enter Collector installation directory
cd /opt/tingyun-collector/ -
Enable Alibaba Cloud module
cd conf.d/aliyun
sudo cp aliyun-processors.yaml.example aliyun-processors.yaml
sudo cp aliyun.yaml.example aliyun.yaml -
Modify data receiving configuration
sudo vim aliyun.yamlreceivers:
prometheusremotewrite/aliyun:
# Alibaba Cloud data delivery interface, default: http://ip:9091/api/v1/write
endpoint: "0.0.0.0:9091"
Restarting Collector
After modifying the configuration, you need to restart Collector.
sudo systemctl restart tingyun-collector
Validating Data
tail -f /opt/tingyun-collector/logs/guanyun/collector.log

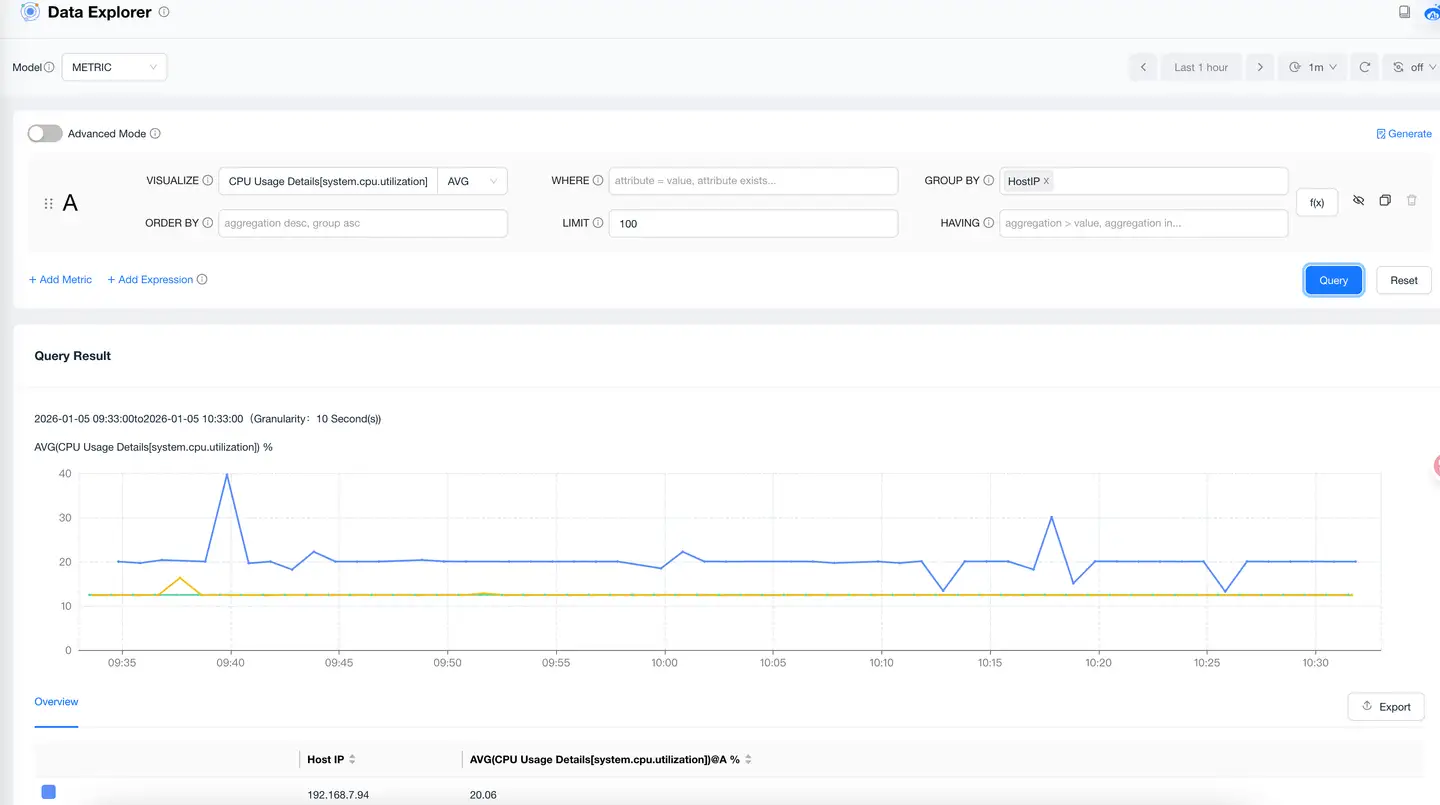

Viewing Data in Guanyun Platform
Go to the Data Explorer lite App, select METRIC as the data model, query any host metric, group by host IP, and confirm that the host IP of the integrated Prometheus data appears in the list.
Supported metrics
| Metric Category | Subcategory | Metric Name | Metric Key |
|---|---|---|---|
| kafka | topic | Topic Message Send Count | aliyunalikafka.topic_reqs_input |
| kafka | topic | Topic Message Consumption Count | aliyunalikafka.topic_reqs_output |
| kafka | topic | Topic Message Consumption Volume | aliyunalikafka.topic_message_output |
| kafka | topic | Topic Message Production Volume | aliyunalikafka.topic_message_input |
| kafka | topic | Topic Message Production Count | aliyunalikafka.topic_message_num_input |
| kafka | Instance | Instance Message Production Count | aliyunalikafka.instance_message_num_input |
| kafka | Instance | Consumption Traffic Ratio to Instance Specification | aliyunalikafka.instancemessageoutputratiov2 |
| kafka | Instance | Instance Disk Usage | aliyunalikafka.instance_disk_capacity |
| kafka | Instance | Instance Message Send Count | aliyunalikafka.instance_reqs_input |
| kafka | Instance | Production Traffic Ratio to Instance Specification | aliyunalikafka.instancemessageinputratiov2 |
| kafka | Instance | Instance Message Consumption Count | aliyunalikafka.instance_reqs_output |
| kafka | Instance | Instance Actual Inbound Traffic | aliyunalikafka.instance_message_input |
| kafka | Instance | Instance Actual Outbound Traffic | aliyunalikafka.instance_message_output |
| Redis-Standard Edition | Instance Dimension | Average Response Time (us) | aliyunkvstore.standardavgrt |
| Redis-Standard Edition | Instance Dimension | Write QPS | aliyunredis.standardputqps |
| Redis-Standard Edition | Instance Dimension | Total Evicted Keys (Cumulative) | aliyunredis.standardexpiredkeys |
| Redis-Standard Edition | Instance Dimension | Maximum Response Time (ms) | aliyunkvstore.standardmaxrt |
| Redis-Standard Edition | Instance Dimension | Read QPS | aliyunredis.standardgetqps |
| Redis-Standard Edition | Instance Dimension | Instance Maximum Connections | aliyunredis.standardquotaconnection |
| Redis-Standard Edition | Instance Dimension | Slow Query Count | aliyunredis.standardslowlogcount |
| Redis-Standard Edition | Instance Dimension | Outbound Bandwidth Usage (%) | aliyunkvstore.standardintranetoutratio |
| Redis-Standard Edition | Instance Dimension | Total Commands Processed | aliyunredis.standardtotalcommandsprocessed |
| Redis-Standard Edition | Instance Dimension | Total Evicted Keys (Cumulative) | aliyunredis.standardevictedkeys |
| Redis-Standard Edition | Instance Dimension | QPS Usage (%) | aliyunkvstore.standardqpsusage |
| Redis-Standard Edition | Instance Dimension | Inbound Traffic (KBytes/s) | aliyunkvstore.standardintranetin |
| Redis-Standard Edition | Instance Dimension | Connection Usage (%) | aliyunkvstore.standardconnectionusage |
| Redis-Standard Edition | Instance Dimension | Keys Hit Per Second | aliyunredis.standardhits |
| Redis-Standard Edition | Instance Dimension | CPU Usage (%) | aliyunkvstore.standardcpuusage |
| Redis-Standard Edition | Instance Dimension | Inbound Bandwidth Usage (%) | aliyunkvstore.standardintranetinratio |
| Redis-Standard Edition | Instance Dimension | Memory Usage (%) | aliyunkvstore.standardmemoryusage |
| Redis-Standard Edition | Instance Dimension | Blocked Client Connections | aliyunredis.standardblockedclients |
| Redis-Standard Edition | Instance Dimension | Keys Evicted Per Second | aliyunredis.standardevictedkeyspersecond |
| Redis-Standard Edition | Instance Dimension | Keys Expired Per Second | aliyunredis.standardexpiredkeyspersecond |
| Redis-Standard Edition | Instance Dimension | Keys Missed Per Second | aliyunredis.standardmisses |
| Redis-Standard Edition | Instance Dimension | Number of Keys in Cache (count) | aliyunkvstore.standardkeys |
| Redis-Standard Edition | Instance Dimension | Outbound Traffic (KBytes/s) | aliyunkvstore.standardintranetout |
| Redis-Standard Edition | Instance Dimension | Total Keys with Expiration Set | aliyunredis.standardexpires |
| Redis-Standard Edition | Instance Dimension | Average Accesses Per Second (count) | aliyunkvstore.standardusedqps |
| Redis-Standard Edition | Instance Dimension | Other QPS | aliyunredis.standardotherops |
| Redis-Standard Edition | Instance Dimension | Used Connections (count) | aliyunkvstore.standardusedconnection |
| Redis-Standard Edition | Instance Dimension | Hit Rate (%) | aliyunkvstore.standardhitrate |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Average Request Size (Byte) | aliyunkvstore.splitrwproxyavgrequestsize |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Write QPS | aliyunredis.splitrwproxyputqps |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Maximum Response Size (Byte) | aliyunkvstore.splitrwproxymaxresponsesize |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Maximum Latency (seconds) | aliyunkvstore.splitrwproxymaxrt |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Maximum Request Size (Byte) | aliyunkvstore.splitrwproxymaxrequestsize |
| Redis-Read/Write Splitting Edition | Proxy | Proxy CPU Usage (%) | aliyunkvstore.splitrwproxycpuusage |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Average Latency (us) | aliyunkvstore.splitrwproxyavgrt |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Average Response Size (Byte) | aliyunkvstore.splitrwproxyavgresponsesize |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Outbound Traffic Rate (KBytes/s) | aliyunkvstore.splitrwproxyintranetout |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Read QPS | aliyunredis.splitrwproxygetqps |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Used Connections (count) | aliyunkvstore.splitrwproxyusedconnection |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Connection Usage (%) | aliyunkvstore.splitrwproxyconnectionusage |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Total Requests Per Second (Count/s) | aliyunkvstore.splitrwproxytotalqps |
| Redis-Read/Write Splitting Edition | Proxy | Proxy Inbound Traffic Rate (KBytes/s) | aliyunkvstore.splitrwproxyintranetin |
| Redis-Cluster Edition | Node | Keys Missed Per Second | aliyunredis.shardingmisses |
| Redis-Cluster Edition | Node | Keys Hit Per Second | aliyunredis.shardinghits |
| Redis-Cluster Edition | Node | QPS Usage (%) | aliyunkvstore.shardingqpsusage |
| Redis-Cluster Edition | Node | CPU Usage (%) | aliyunkvstore.shardingcpuusage |
| Redis-Cluster Edition | Node | Maximum Response Time (us) | aliyunkvstore.shardingmaxrt |
| Redis-Cluster Edition | Node | Inbound Traffic (KBytes/s) | aliyunkvstore.shardingintranetin |
| Redis-Cluster Edition | Node | Proxy to DB Connections | aliyunredis.shardingadminclients |
| Redis-Cluster Edition | Node | Inbound Bandwidth Usage (%) | aliyunkvstore.shardingintranetinratio |
| Redis-Cluster Edition | Node | Total Expired Keys (Cumulative) | aliyunredis.shardingexpiredkeys |
| Redis-Cluster Edition | Node | Average Response Time (us) | aliyunkvstore.shardingavgrt |
| Redis-Cluster Edition | Node | Other QPS | aliyunredis.shardingotherops |
| Redis-Cluster Edition | Node | Total Commands Processed | aliyunredis.shardingtotalcommandsprocessed |
| Redis-Cluster Edition | Node | Slow Query Count | aliyunredis.shardingslowlogcount |
| Redis-Cluster Edition | Node | Connection Usage (%) | aliyunkvstore.shardingconnectionusage |
| Redis-Cluster Edition | Node | Blocked Client Connections | aliyunredis.shardingblockedclients |
| Redis-Cluster Edition | Node | Number of Keys in Cache (count) | aliyunkvstore.shardingkeys |
| Redis-Cluster Edition | Node | Memory Usage (Bytes) | aliyunkvstore.shardingusedmemory |
| Redis-Cluster Edition | Node | Total Evicted Keys (Cumulative) | aliyunredis.shardingevictedkeys |
| Redis-Cluster Edition | Node | Total Keys with Expiration Set | aliyunredis.shardingexpires |
| Redis-Cluster Edition | Node | Instance Maximum Connections | aliyunredis.shardingquotaconnection |
| Redis-Cluster Edition | Node | Memory Usage (%) | aliyunkvstore.shardingmemoryusage |
| Redis-Cluster Edition | Node | Outbound Traffic (KBytes/s) | aliyunkvstore.shardingintranetout |
| Redis-Cluster Edition | Node | Average Accesses Per Second (count) | aliyunkvstore.shardingusedqps |
| Redis-Cluster Edition | Node | Used Connections (count) | aliyunkvstore.shardingusedconnection |
| Redis-Cluster Edition | Node | Outbound Bandwidth Usage (%) | aliyunkvstore.shardingintranetoutratio |
| Redis-Cluster Edition | Node | Read QPS | aliyunredis.shardinggetqps |
| Redis-Cluster Edition | Node | Keys Expired Per Second | aliyunredis.shardingexpiredkeyspersecond |
| Redis-Cluster Edition | Node | Write QPS | aliyunredis.shardingputqps |
| Redis-Cluster Edition | Node | Keys Evicted Per Second | aliyunredis.shardingevictedkeyspersecond |
| Redis-Cluster Edition | Node | Hit Rate (%) | aliyunkvstore.shardinghitrate |
| Redis-Cluster Edition | Proxy | Proxy Instance Used Connections | aliyunredis.shardinginstproxyusedconnection |
| Redis-Cluster Edition | Proxy | Proxy Instance Outbound Bandwidth | aliyunredis.shardinginstproxyintranetout |
| Redis-Cluster Edition | Proxy | Proxy Instance Total Requests Per Second | aliyunredis.shardinginstproxytotalqps |
| Redis-Cluster Edition | Proxy | Proxy Instance Inbound Bandwidth | aliyunredis.shardinginstproxyintranetin |
| Redis-Cluster Edition | Proxy | Proxy Write QPS | aliyunredis.shardingproxyputqps |
| Redis-Cluster Edition | Proxy | Proxy Read QPS | aliyunredis.shardingproxygetqps |
| Redis-Cluster Edition | Proxy | Proxy Maximum Latency (seconds) | aliyunkvstore.shardingproxymaxrt |
| Redis-Cluster Edition | Proxy | Proxy Maximum Request Size (Byte) | aliyunkvstore.shardingproxymaxrequestsize |
| Redis-Cluster Edition | Proxy | Proxy Total Requests Per Second (Count/s) | aliyunkvstore.shardingproxytotalqps |
| Redis-Cluster Edition | Proxy | Proxy Connection Usage (%) | aliyunkvstore.shardingproxyconnectionusage |
| Redis-Cluster Edition | Proxy | Proxy Average Response Size (Byte) | aliyunkvstore.shardingproxyavgresponsesize |
| Redis-Cluster Edition | Proxy | Proxy Average Request Size (Byte) | aliyunkvstore.shardingproxyavgrequestsize |
| Redis-Cluster Edition | Proxy | Proxy Used Connections (count) | aliyunkvstore.shardingproxyusedconnection |
| Redis-Cluster Edition | Proxy | Proxy Outbound Traffic Rate (KBytes/s) | aliyunkvstore.shardingproxyintranetout |
| Redis-Cluster Edition | Proxy | Proxy Inbound Traffic Rate (KBytes/s) | aliyunkvstore.shardingproxyintranetin |
| Redis-Cluster Edition | Proxy | Proxy Maximum Response Size (Byte) | aliyunkvstore.shardingproxymaxresponsesize |
| Redis-Cluster Edition | Proxy | Proxy Average Latency (us) | aliyunkvstore.shardingproxyavgrt |
| Redis-Cluster Edition | Proxy | Proxy CPU Usage (%) | aliyunkvstore.shardingproxycpuusage |
| MongoDB Sharded Cluster | Instance Dimension | Number of Requests | aliyunmongodb.sharding_shardingnumberrequests |
| MongoDB Sharded Cluster | Instance Dimension | Connection Usage | aliyunmongodb.sharding_shardingconnectionamount |
| MongoDB Sharded Cluster | Instance Dimension | Memory Usage | aliyunmongodb.sharding_shardingmemoryutilization |
| MongoDB Sharded Cluster | Instance Dimension | QPS | aliyunmongodb.sharding_shardingqps |
| MongoDB Sharded Cluster | Instance Dimension | Network Inbound Traffic | aliyunmongodb.sharding_shardingintranetin |
| MongoDB Sharded Cluster | Instance Dimension | Disk Space Used | aliyunmongodb.sharding_shardinginstancediskamount |
| MongoDB Sharded Cluster | Instance Dimension | Insert Operations | aliyunmongodb.sharding_shardingopinsert |
| MongoDB Sharded Cluster | Instance Dimension | Update Operations | aliyunmongodb.sharding_shardingopupdate |
| MongoDB Sharded Cluster | Instance Dimension | Query Operations | aliyunmongodb.sharding_shardingopquery |
| MongoDB Sharded Cluster | Instance Dimension | Command Operations | aliyunmongodb.sharding_shardingopcommand |
| MongoDB Sharded Cluster | Instance Dimension | Original Disk Configuration | aliyunmongodb.sharding_shardingdatadiskamountoriginal |
| MongoDB Sharded Cluster | Instance Dimension | Connection Usage Rate | aliyunmongodb.sharding_shardingconnectionutilization |
| MongoDB Sharded Cluster | Instance Dimension | Delete Operations | aliyunmongodb.sharding_shardingopdelete |
| MongoDB Sharded Cluster | Instance Dimension | Getmore Operations | aliyunmongodb.sharding_shardingopgetmore |
| MongoDB Sharded Cluster | Instance Dimension | Data Disk Space Used | aliyunmongodb.sharding_shardingdatadiskamount |
| MongoDB Sharded Cluster | Instance Dimension | CPU Usage | aliyunmongodb.sharding_shardingcpuutilization |
| MongoDB Sharded Cluster | Instance Dimension | Replication Lag | aliyunmongodb.sharding_shardingreplicationlag |
| MongoDB Sharded Cluster | Instance Dimension | Disk Usage | aliyunmongodb.sharding_shardingdiskutilization |
| MongoDB Sharded Cluster | Instance Dimension | Network Outbound Traffic | aliyunmongodb.sharding_shardingintranetout |
| MongoDB Sharded Cluster | Instance Dimension | IOPS Usage | aliyunmongodb.sharding_shardingiopsutilization |
| MongoDB Sharded Cluster | Instance Dimension | Log Disk Space Used | aliyunmongodb.sharding_shardinglogdiskamount |
| MongoDB Sharded Cluster | Instance Dimension | Oplog Retention Time | aliyunmongodb.sharding_shardingoplogtimeinterval |
| MongoDB Replica Set | Instance Dimension | Network Inbound Traffic | aliyunmongodb.replicaset_intranetin |
| MongoDB Replica Set | Instance Dimension | Delete Operations | aliyunmongodb.replicaset_opdelete |
| MongoDB Replica Set | Instance Dimension | Connection Usage | aliyunmongodb.replicaset_connectionamount |
| MongoDB Replica Set | Instance Dimension | Log Disk Space Used | aliyunmongodb.replicaset_logdiskamount |
| MongoDB Replica Set | Instance Dimension | Instance Disk Space Used | aliyunmongodb.replicaset_instancediskamount |
| MongoDB Replica Set | Instance Dimension | Write Operation Average Response Time | aliyunmongodb.replicaset_writeavgrt |
| MongoDB Replica Set | Instance Dimension | Network Outbound Traffic | aliyunmongodb.replicaset_intranetout |
| MongoDB Replica Set | Instance Dimension | Read Operation Average Response Time | aliyunmongodb.replicaset_readavgrt |
| MongoDB Replica Set | Instance Dimension | Number of Requests | aliyunmongodb.replicaset_numberrequests |
| MongoDB Replica Set | Instance Dimension | Data Disk Space Used | aliyunmongodb.replicaset_datadiskamount |
| MongoDB Replica Set | Instance Dimension | CPU Usage | aliyunmongodb.replicaset_cpuutilization |
| MongoDB Replica Set | Instance Dimension | Connection Usage Rate | aliyunmongodb.replicaset_connectionutilization |
| MongoDB Replica Set | Instance Dimension | Disk Usage | aliyunmongodb.replicaset_diskutilization |
| MongoDB Replica Set | Instance Dimension | Command Operations | aliyunmongodb.replicaset_opcommand |
| MongoDB Replica Set | Instance Dimension | Oplog Retention Time | aliyunmongodb.replicaset_oplogtimeinterval |
| MongoDB Replica Set | Instance Dimension | Query Operations | aliyunmongodb.replicaset_opquery |
| MongoDB Replica Set | Instance Dimension | Getmore Operations | aliyunmongodb.replicaset_opgetmore |
| MongoDB Replica Set | Instance Dimension | Memory Usage | aliyunmongodb.replicaset_memoryutilization |
| MongoDB Replica Set | Instance Dimension | Update Operations | aliyunmongodb.replicaset_opupdate |
| MongoDB Replica Set | Instance Dimension | Replication Lag | aliyunmongodb.replicaset_replicationlag |
| MongoDB Replica Set | Instance Dimension | IOPS Usage | aliyunmongodb.replicaset_iopsutilization |
| MongoDB Replica Set | Instance Dimension | Average SQL Queries Per Second | aliyunmongodb.replicaset_qps |
| MongoDB Replica Set | Instance Dimension | Insert Operations | aliyunmongodb.replicaset_opinsert |
| ApsaraDB for MySQL | Instance Dimension | MySQL Network Outbound Bandwidth | aliyunrds.mysql_networkoutnew |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Log Physical Writes Per Second | aliyunrds.mysql_innodblogwrites |
| ApsaraDB for MySQL | Instance Dimension | MySQL_BP Dirty Page Percentage | aliyunrds.mysql_ibufdirtyratio |
| ApsaraDB for MySQL | Instance Dimension | MySQL_ActiveSessions | aliyunrds.mysql_activesessions |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Rows Updated Per Second | aliyunrds.mysql_innodbrowupdate |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Threads Connected | aliyunrds.mysql_threadsconnected |
| ApsaraDB for MySQL | Instance Dimension | MySQL Temporary Tables Created On Disk Per Second | aliyunrds.mysql_tempdisktablecreates |
| ApsaraDB for MySQL | Instance Dimension | MySQL Transactions Per Second | aliyunrds.mysql_tps |
| ApsaraDB for MySQL | Instance Dimension | MySQL Replace Operations Per Second | aliyunrds.mysql_comreplace |
| ApsaraDB for MySQL | Instance Dimension | Total Sessions | aliyunrds.mysql_totalsessions |
| ApsaraDB for MySQL | Instance Dimension | Primary-Standby Sync Delay | aliyunrds.mysql_standbysynclag |
| ApsaraDB for MySQL | Instance Dimension | MySQL Network Inbound Bandwidth | aliyunrds.mysql_networkinnew |
| ApsaraDB for MySQL | Instance Dimension | aliyunrds.mysql_iops | |
| ApsaraDB for MySQL | Instance Dimension | Open Files | aliyunrds.mysql_openfiles |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Active Threads | aliyunrds.mysql_threadsrunning |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Temporary Disk Usage | aliyunrds.mysql_tmpdisksize |
| ApsaraDB for MySQL | Instance Dimension | MySQL Read/Write Throughput | aliyunrds.mysql_dataiobytesps |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Rows Deleted Per Second | aliyunrds.mysql_innodbrowdelete |
| ApsaraDB for MySQL | Instance Dimension | MySQL Physical Reads Per Second | aliyunrds.mysql_ibufpoolreads |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Log Write Requests Per Second | aliyunrds.mysql_innodblogwriterequests |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Row Lock Wait Time Per Second | aliyunrds.mysql_innodbrowlocktimeps |
| ApsaraDB for MySQL | Instance Dimension | MySQL Delete Operations Per Second | aliyunrds.mysql_comdelete |
| ApsaraDB for MySQL | Instance Dimension | MySQL Logical Writes Per Second | aliyunrds.mysql_ibufrequestw |
| ApsaraDB for MySQL | Instance Dimension | Disk Usage | aliyunrds.diskusage |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Data Read Per Second | aliyunrds.mysql_innodbdataread |
| ApsaraDB for MySQL | Instance Dimension | MySQL Insert Select Operations Per Second | aliyunrds.mysql_cominsertselect |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Log Disk Usage | aliyunrds.mysql_logdisksize |
| ApsaraDB for MySQL | Instance Dimension | IOPS Usage | aliyunrds.iopsusage |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Log Fsync Operations Per Second | aliyunrds.mysql_innodblogfsync |
| ApsaraDB for MySQL | Instance Dimension | MySQL Insert Operations Per Second | aliyunrds.mysql_cominsert |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Data Written Per Second | aliyunrds.mysql_innodbdatawritten |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Rows Inserted Per Second | aliyunrds.mysql_innodbrowinsert |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Data Disk Usage | aliyunrds.mysql_datadisksize |
| ApsaraDB for MySQL | Instance Dimension | MySQL_BP Utilization | aliyunrds.mysql_ibufuseratio |
| ApsaraDB for MySQL | Instance Dimension | Connection Usage Rate | aliyunrds.connectionusage |
| ApsaraDB for MySQL | Instance Dimension | MySQL Update Operations Per Second | aliyunrds.mysql_comupdate |
| ApsaraDB for MySQL | Instance Dimension | MDL Lock Blocking Connections | aliyunrds.mysql_mdllocksession |
| ApsaraDB for MySQL | Instance Dimension | MySQL Queries Per Second | aliyunrds.mysql_qps |
| ApsaraDB for MySQL | Instance Dimension | MySQL_InnoDB Rows Read Per Second | aliyunrds.mysql_innodbrowread |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Other Disk Usage | aliyunrds.mysql_otherdisksize |
| ApsaraDB for MySQL | Instance Dimension | MySQL_BP Read Hit Rate | aliyunrds.mysql_ibufreadhit |
| ApsaraDB for MySQL | Instance Dimension | Memory Usage | aliyunrds.memoryusage |
| ApsaraDB for MySQL | Instance Dimension | CPU Usage | aliyunrds.cpuusage |
| ApsaraDB for MySQL | Instance Dimension | MySQL Select Operations Per Second | aliyunrds.mysql_comselect |
| ApsaraDB for MySQL | Instance Dimension | MySQL Select Scan Operations Per Second | aliyunrds.mysql_selectscan |
| ApsaraDB for MySQL | Instance Dimension | MySQL Replace Select Operations Per Second | aliyunrds.mysql_comreplaceselect |
| ApsaraDB for MySQL | Instance Dimension | MySQL Slow Queries Per Second | aliyunrds.mysql_slowqueries |
| ApsaraDB for MySQL | Instance Dimension | MySQL Logical Reads Per Second | aliyunrds.mysql_ibufrequestr |
| ApsaraDB for MySQL | Instance Dimension | MySQL_Instance Disk Usage | aliyunrds.mysql_instancedisksize |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Slow SQL Executing > 3s (count) | aliyunrds.pg_three_seconds_executing_sqls |
| ApsaraDB for PostgreSQL | Instance Dimension | Idle Connections | aliyunrds.pg_connectionidle |
| ApsaraDB for PostgreSQL | Instance Dimension | Network Output Traffic | aliyunrds.pg_networktx |
| ApsaraDB for PostgreSQL | Instance Dimension | SharedBuffer Memory Usage | aliyunrds.pg_sharedbufferusage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_INODE Usage (%) | aliyunrds.pg_local_fs_inode_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | Local Disk Read Throughput | aliyunrds.pg_localthroughputread |
| ApsaraDB for PostgreSQL | Instance Dimension | Local Disk Throughput | aliyunrds.pg_localthroughput |
| ApsaraDB for PostgreSQL | Instance Dimension | Active Connections | aliyunrds.pg_connectionactive |
| ApsaraDB for PostgreSQL | Instance Dimension | Network Input Traffic | aliyunrds.pg_networkrx |
| ApsaraDB for PostgreSQL | Instance Dimension | Backend Process Disk Reads Per Second | aliyunrds.pg_blksread |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Slow SQL Executing > 5s (count) | aliyunrds.pg_five_seconds_executing_sqls |
| ApsaraDB for PostgreSQL | Instance Dimension | Write Transaction Commits Per Second | aliyunrds.pg_transactioncommit |
| ApsaraDB for PostgreSQL | Instance Dimension | Total Connections | aliyunrds.pg_connectiontotal |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Max Replication Slot Delay (MB) | aliyunrds.pg_maxslotwaldelay |
| ApsaraDB for PostgreSQL | Instance Dimension | SharedBuffer Hit Count | aliyunrds.pg_sharedbufferhitcount |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_CPU Usage (%) | aliyunrds.pg_cpu_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_IOPS Usage (%) | aliyunrds.pg_iops_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Database Age (xids) | aliyunrds.pg_dbage |
| ApsaraDB for PostgreSQL | Instance Dimension | Write Transaction Rollbacks Per Second | aliyunrds.pg_transactionrollback |
| ApsaraDB for PostgreSQL | Instance Dimension | Local Disk Write Throughput | aliyunrds.pg_localthroughputwrite |
| ApsaraDB for PostgreSQL | Instance Dimension | SharedBuffer Hit Rate | aliyunrds.pg_sharedbufferhitrate |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Memory Usage (%) | aliyunrds.pg_mem_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Disk Space Usage (%) | aliyunrds.pg_local_fs_size_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Average Active Connections Per CPU (count) | aliyunrds.pg_active_connections_per_cpu |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_WAL File Size (MB) | aliyunrds.pg_local_pg_wal_dir_size |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Slowest Standby Replay Latency (MB) | aliyunrds.pg_replaylatency |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Connection Usage (%) | aliyunrds.pg_conn_usage |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Slowest SQL Execution Time (seconds) | aliyunrds.pg_maxexecutingsqltime |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Longest Transaction Execution Time (seconds) | aliyunrds.pg_swelltime |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Inactive Replication Slots (count) | aliyunrds.pg_inactiveslots |
| ApsaraDB for PostgreSQL | Instance Dimension | Waiting Connections | aliyunrds.pg_connectionwaiting |
| ApsaraDB for PostgreSQL | Instance Dimension | PG_Slow SQL Executing > 1s (count) | aliyunrds.pg_one_second_executing_sqls |
| ApsaraDB for SQL Server | Instance Dimension | SQLServer Cpu Usage (%) | aliyunrds.sqlserver_cpuusage |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Total Connections (count) | aliyunrds.sqlserver_totaconn |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer IOPS (count/s) | aliyunrds.sqlserver_iops |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Network Outbound Bandwidth (bits/s) | aliyunrds.sqlserver_networkoutnew |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Disk Usage (%) | aliyunrds.sqlserver_diskusage |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Network Inbound Bandwidth (bits/s) | aliyunrds.sqlserver_networkwrite |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Queries Per Second (count/s) | aliyunrds.sqlserver_qps |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Network Inbound Bandwidth (bits/s) | aliyunrds.sqlserver_networkinnew |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Transactions Per Second (count/s) | aliyunrds.sqlserver_tps |
| ApsaraDB for SQLServer | Instance Dimension | SQLServer Network Outbound Bandwidth (bits/s) | aliyunrds.sqlserver_networkread |
| ECS | Network | (Agent)network.in.rate_device(bits/s) | aliyunecs.networkin_rate |
| ECS | Network | (ECS)Public IP Outbound Bandwidth Usage (%) | aliyunecs.vpc_publicip_internetoutrate_percent |
| ECS | Network | (ECS)Public IP Outbound Bandwidth | aliyunecs.vpc_publicip_internetoutrate |
| ECS | Network | Instance Network Credit Overflow Dropped Packets (count) | aliyunecs.networkcredit_limit_overflow_errorpackets |
| ECS | Network | (Agent)network.out.rate_device(bits/s) | aliyunecs.networkout_rate |
| ECS | Network | (Old Agent)network_tcp_connection_state | aliyunecs.vm_tcpcount |
| ECS | Network | (ECS)Public IP Inbound Bandwidth | aliyunecs.vpc_publicip_internetinrate |
| ECS | Network | (Agent)network.out.errorpackages_device(Count/s) | aliyunecs.networkout_errorpackages |
| ECS | Network | (Agent)network.out.packages_device(Count/s) | aliyunecs.networkout_packages |
| ECS | Network | (Agent)network.out.droppackages.percent_device(%) | aliyunecs.networkout_droppackages_percent |
| ECS | Network | (Agent)network.in.packages_device(Count/s) | aliyunecs.networkin_packages |
| ECS | Network | (Agent)network.in.droppackages.percent_device(%) | aliyunecs.networkin_droppackages_percent |
| ECS | Network | (Agent)network.tcp.connection_state(count) | aliyunecs.net_tcpconnection |
| ECS | Network | VPC_PublicIP_InternetInRate_Percent | aliyunecs.vpc_publicip_internetinrate_percent |
| ECS | Network | (Agent)network.in.errorpackages_device(Count/s) | aliyunecs.networkin_errorpackages |
| ECS | Group Dimension | (ECS)Group CPU Usage | aliyunecs.groupcpuutilization |
| ECS | Group Dimension | (ECS)Group Public Outbound Bandwidth | aliyunecs.groupinternetoutrate |
| ECS | Group Dimension | (ECS)Group Intranet Inbound Bandwidth | aliyunecs.groupintranetinrate |
| ECS | Group Dimension | (ECS)Group Public Inbound Bandwidth | aliyunecs.groupinternetinrate |
| ECS | Group Dimension | (ECS)Group Intranet Outbound Bandwidth | aliyunecs.groupintranetoutrate |
| ECS | Instance Dimension | (Agent)load.5m.percore | aliyunecs.load_per_core_5m |
| ECS | Instance Dimension | (ECS)Concurrent Connections (count) | aliyunecs.concurrentconnections |
| ECS | Instance Dimension | (ECS)Outbound Packet Loss Rate (%) | aliyunecs.packetoutdroprates |
| ECS | Instance Dimension | (Agent)memory.free.utilization(%) | aliyunecs.memory_freeutilization |
| ECS | Instance Dimension | (Agent)memory.free.space(bytes) | aliyunecs.memory_freespace |
| ECS | Instance Dimension | (ECS)All Disk Read IOPS | aliyunecs.diskreadiops |
| ECS | Instance Dimension | (ECS)Classic Network Public Inbound Bandwidth (bits/s) | aliyunecs.internetinrate |
| ECS | Instance Dimension | (ECS)Classic Network Public Outbound Traffic (bytes) | aliyunecs.internetout |
| ECS | Instance Dimension | (ECS)Classic Network Public Inbound Traffic (bytes) | aliyunecs.internetin |
| ECS | Instance Dimension | (ECS)All Disk Write IOPS (count/s) | aliyunecs.diskwriteiops |
| ECS | Instance Dimension | (ECS)All Disk Write BPS | aliyunecs.diskwritebps |
| ECS | Instance Dimension | (ECS)Classic Network Public Outbound Bandwidth Usage (%) | aliyunecs.internetoutrate_percent |
| ECS | Instance Dimension | CPU Idle | aliyunecs.cpu_idle |
| ECS | Instance Dimension | (ECS)Intranet Outbound Bandwidth (bits/s) | aliyunecs.intranetoutrate |
| ECS | Instance Dimension | (ECS)Intranet Inbound Bandwidth (bits/s) | aliyunecs.intranetinrate |
| ECS | Instance Dimension | CPU Core Count | aliyunecs.cpu_cores |
| ECS | Instance Dimension | (ECS)Intranet Outbound Traffic (bytes) | aliyunecs.intranetout |
| ECS | Instance Dimension | (ECS)Intranet Inbound Traffic (bytes) | aliyunecs.intranetin |
| ECS | Instance Dimension | (Old Agent)load_1m | aliyunecs.vm_loadaverage |
| ECS | Instance Dimension | (Old Agent)memory_used_utilization | aliyunecs.vm_memoryutilization |
| ECS | Instance Dimension | User Space CPU | aliyunecs.cpu_user |
| ECS | Instance Dimension | (ECS)CPU Usage | aliyunecs.cpuutilization |
| ECS | Instance Dimension | Connection Usage Rate | aliyunecs.connectionutilization |
| ECS | Instance Dimension | (Agent)memory.used.space(bytes) | aliyunecs.memory_usedspace |
| ECS | Instance Dimension | (Agent)cpu.total | aliyunecs.cpu_total |
| ECS | Instance Dimension | (ECS)All Disk Read BPS | aliyunecs.diskreadbps |
| ECS | Instance Dimension | (Agent)memory.total.space(bytes) | aliyunecs.memory_totalspace |
| ECS | Instance Dimension | (Agent)System Load Average (1 minute) | aliyunecs.load_1m |
| ECS | Instance Dimension | (Agent)System Load Average (5 minutes) | aliyunecs.load_5m |
| ECS | Instance Dimension | Kernel Space CPU | aliyunecs.cpu_system |
| ECS | Instance Dimension | (Old Agent)cpu_total | aliyunecs.vm_cpuutilization |
| ECS | Instance Dimension | Other CPU | aliyunecs.cpu_other |
| ECS | Instance Dimension | I/O Wait CPU | aliyunecs.cpu_wait |
| ECS | Instance Dimension | (Agent)System Load Average (15 minutes) | aliyunecs.load_15m |
| ECS | Instance Dimension | (ECS)Classic Network Public Outbound Bandwidth (bits/s) | aliyunecs.internetoutrate |
| ECS | Instance Dimension | (Agent)Memory Usage (%) | aliyunecs.memory_usedutilization |
| ECS | Instance Dimension | (Agent)load.1m.percore | aliyunecs.load_per_core_1m |
| ECS | Instance Dimension | (Agent)load.15m.percore | aliyunecs.load_per_core_15m |
| ECS | Instance Dimension | (ECS)Inbound Packet Loss Rate (%) | aliyunecs.packetindroprates |
| ECS | Instance Dimension | (Agent)memory.actualused.space(bytes) | aliyunecs.memory_actualusedspace |
| ECS | Instance Dimension | ECS Status Check (Running Normally) | aliyunecs.statuscheck |
| ECS | Instance Dimension | ECS Instance System Status Check (Running Normally) | aliyunecs.statuscheckins |
| ECS | Instance Dimension | ECS Host Status Check (Running Normally) | aliyunecs.statuschecksys |
| ECS | Instance Dimension | All Disk Read BPS Usage | aliyunecs.diskreadbpsutilization |
| ECS | Instance Dimension | All Disk Read IOPS Usage | aliyunecs.diskreadiopsutilization |
| ECS | Instance Dimension | All Disk Read/Write BPS Burst Usage | aliyunecs.diskreadwritebpsburstutilization |
| ECS | Instance Dimension | All Disk Read/Write BPS Usage | aliyunecs.diskreadwritebpsutilization |
| ECS | Instance Dimension | All Disk Read/Write IOPS Burst Usage | aliyunecs.diskreadwriteiopsburstutilization |
| ECS | Instance Dimension | All Disk Read/Write IOPS Usage | aliyunecs.diskreadwriteiopsutilization |
| ECS | Instance Dimension | All Disk Write BPS Usage | aliyunecs.diskwritebpsutilization |
| ECS | Instance Dimension | All Disk Write IOPS Usage | aliyunecs.diskwriteiopsutilization |
| ECS | Instance Dimension | Instance (Memory) Size | aliyunecs.instancememorysize |
| ECS | Instance Dimension | Instance (vCPU) Count | aliyunecs.instancevcpunum |
| ECS | Instance Dimension | Instance Burst Inbound Bandwidth Usage | aliyunecs.intranetinrateburstutilization |
| ECS | Instance Dimension | Instance Inbound Bandwidth Usage | aliyunecs.intranetinrateutilization |
| ECS | Instance Dimension | Instance Burst Outbound Bandwidth | aliyunecs.intranetoutrateburstutilization |
| ECS | Instance Dimension | Instance Outbound Bandwidth | aliyunecs.intranetoutrateutilization |
| ECS | Instance Dimension | Backend No Available Mbuf Dropped Packets (Instance Dimension) | aliyunecs.ocnnobuferrpacketsinstance |
| ECS | Instance Dimension | Backend No Available Mbuf Dropped Packets (NIC Dimension) | aliyunecs.ocnnobuferrpacketsnetcard |
| ECS | Instance Dimension | Instance System File Descriptor Usage Percentage | aliyunecs.systemfiledescriptorutlization |
| ECS | Mount Point | (Old Agent)fs_inode_utilization_mountpoint | aliyunecs.vm_diskiusedutilization |
| ECS | Disk | Disk Used Storage Space | aliyunecs.diskusage_used |
| ECS | Disk | (Old Agent)disk_usage_utilization_mountpoint | aliyunecs.vm_diskutilization |
| ECS | Disk | Disk Write IOPS | aliyunecs.disk_writeiops |
| ECS | Disk | Free Disk Space | aliyunecs.diskusage_free |
| ECS | Disk | Disk Usage | aliyunecs.diskusage_utilization |
| ECS | Disk | Total Disk Storage | aliyunecs.diskusage_total |
| ECS | Disk | (Old Agent)disk_readbytes_diskname | aliyunecs.vm_diskioread |
| ECS | Disk | Available Disk Space for Regular Users | aliyunecs.diskusage_avail |
| ECS | Disk | Inode Usage | aliyunecs.fs_inodeutilization |
| ECS | Disk | Mounted Disk Read IOPS | aliyunecs.disk_readiops |
| ECS | Disk | Disk Write Bytes Per Second | aliyunecs.disk_writebytes |
| ECS | Disk | (Old Agent)disk_writebytes_diskname | aliyunecs.vm_diskiowrite |
| ECS | Disk | (Agent)disk.read.bytes_device | aliyunecs.disk_readbytes |
| ECS | Disk | Host.diskIO.queueSize | aliyunecs.diskioqueuesize |
| ECS | Process | (Agent)process.cpu_pid(%) | aliyunecs.process_cpu |
| ECS | Process | (Agent)process.openfile_pid | aliyunecs.process_openfile |
| ECS | Process | Total System Processes (Count/Min) | aliyunecs.vm_processcount |
| ECS | Process | (Agent)process.memory_pid | aliyunecs.process_memory |
| ECS | Region | Instance (Memory) Size | aliyunecs.regioninstancememorysize |
| ECS | Region | Instance Count | aliyunecs.regioninstancenum |
| ECS | Region | Instance (vCPU) Count | aliyunecs.regioninstancevcpunum |
| ECS | user | Instance (Memory) Size | aliyunecs.totalinstancememorysize |
| ECS | user | Instance Count | aliyunecs.totalinstancenum |
| ECS | user | Instance (vCPU) Count | aliyunecs.totalinstancevcpunum |
